In the hyper-competitive world of 2026 textile manufacturing, the perceived value of a garment is often tied directly to its ability to maintain a “brand new” appearance after repeated wear and laundering. Two of the most common physical failures that degrade this perception—and lead to high return rates—are pilling (the formation of small fiber balls) and abrasion (the wearing away of fibers due to friction). To combat these issues, modern laboratories rely on the pilling tester machine and the martindale abrasion machine. These instruments are not merely tools for measurement; they are essential engineering devices for creating fabrics that meet the rigorous durability standards of global luxury and performance brands.
Simulating Real-World Friction: The Pilling Challenge
The phenomenon of pilling occurs when loose fibers migrate to the fabric surface and entangle during daily wear. A pilling tester machine is designed to replicate this months-long process in an accelerated, controlled environment. There are several standardized types of pilling tests, including the ICI Pilling Box and the Random Tumble Pilling Tester. In the ICI method, fabric samples are mounted on specialized polyurethane tubes and tumbled inside a cork-lined box for thousands of rotations.
ChiuVention’s PillSnag, a leading-edge pilling tester machine, enhances this process through smart automation and IoT connectivity. By using a sophisticated electronic control system, the machine ensures that the rotation speed remains perfectly constant, typically at 60 rpm, as required by international standards. This precision is critical because even a 1% variation in speed can lead to inconsistent results, making it impossible for a brand to accurately grade a fabric’s performance. After the test, samples are compared against standard photographs to assign a grade. This empirical data from the pilling tester machine allows manufacturers to decide if a fabric requires a different yarn twist or a specialized enzyme wash to reduce surface hairiness before mass production begins.
Quantifying Surface Wear: The Martindale Standard

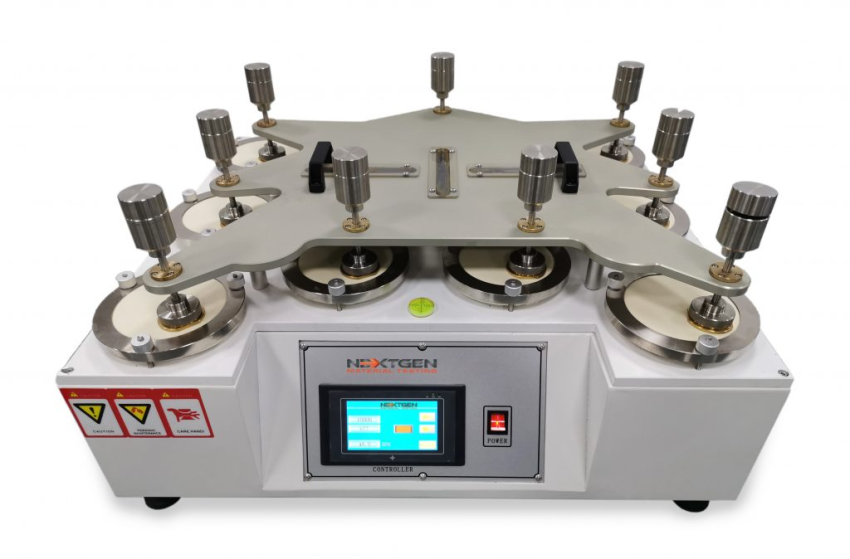

While pilling is primarily an aesthetic concern, abrasion can lead to total structural failure of a garment or piece of upholstery. The martindale abrasion machine is the global gold standard for evaluating a fabric’s resistance to surface wear. It uses a unique mechanical motion known as a “Lissajous curve”—a complex, figure-eight geometric pattern that ensures the fabric sample is rubbed from every possible direction simultaneously. This simulates the multi-directional friction of a person sitting on a sofa or the rubbing of an inner thigh against denim.
The Smartindale, a modern digital iteration of the martindale abrasion machine, utilizes a patented algorithm to drive its dual servo motors. This replaces the traditional mechanical drive system of pins and gears, which often required frequent, manual calibration to maintain the correct Lissajous pattern. With the Smartindale, the motion is controlled with digital precision, ensuring that a test conducted today will yield the exact same results as one conducted three years from now. This “high reproducibility” is vital for brands that source materials from twenty different factories worldwide and need a consistent, unshakeable benchmark for quality.
The Role of IoT in Durability Testing Efficiency
One of the most significant advancements in the modern laboratory is the integration of IoT into the pilling tester machine and martindale abrasion machine. Through the SmarTexLab system, these machines are no longer isolated “islands” of data. They are connected to a central cloud server, allowing lab managers to monitor test progress in real-time via a smartphone app.
For example, a Martindale test for high-durability commercial upholstery can last for 100,000 cycles, taking several days of continuous machine operation to complete. In a traditional lab, a technician would need to physically check the machine every few hours. With a smart martindale abrasion machine, the system sends a push notification to the manager’s phone the moment the test is finished or if the machine requires attention. This “Smart Testing” approach reduces manual labor requirements by up to 50% and allows for a much more agile production schedule. By combining precise mechanical action with digital cloud intelligence, manufacturers can guarantee that their fabrics will not only look stunning on the retail shelf but will also withstand the rigorous demands of daily life for years to come.
